CK+ Universal Propane Complete Deluxe Fire Pit Kit - w/ Key Control - Burner Sold Separate

  • $160.00


CK+: Universal Propane Complete Deluxe Fire Pit Kit - Includes ALL Except the Burner! – MOUNTING KIT, LP REGULATOR, 12' & 3′ HOSES & FITTINGS W/ KEY VALVE CONTROL ASSEMBLY, COVER & KEY

It will connect to a standard Propane/ LP Tank (5 pounds to 200 gallons) via the reverse threaded inner tank input threads ("lefty tighty");  then have all fittings to the key valve and then to the burner (and all parts and fittings in between). This is our Universal COMPLETE DELUXE Fire Pit Kit for making a PROPANE Fire Pit Kit and Includes EVERYTHING YOU NEED EXCEPT the burner itself.

The main difference b/w the BASIC and the DELUXE kit is the table/ pit – side control of the flame intensity and as well as the ability to turn it on and off without having to go to the propane tank or regulator (with Deluxe or “+” Kits both the regulator and the tank stay on and all fireside control is at the key valve); great when the tank is hidden under something/ table/ etc.. and not visible or easily accessible.  The Key Valve can be mounted in a deck, block, brick or wood within 3′ of the center of the fire ring or main burner connection.

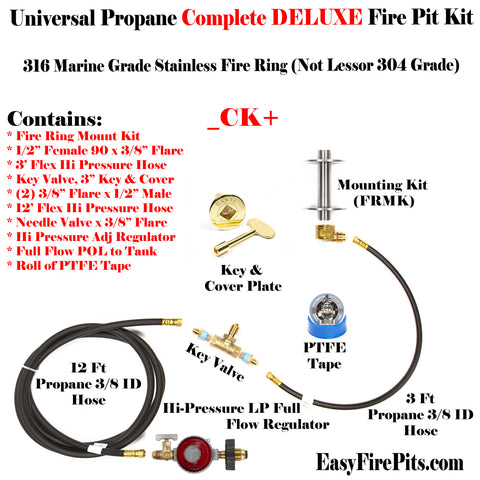

DELUXE LP KIT (CK+) Kit: Kit Includes/ Options

  1.  20PSI Adjustable LP Regulator U.S./ Canadian Standard
    • OPTIONS Choose Different Pressure or Style Regulator
  2. 3 & 12 Foot  Thermoplastic / Rubber Hi-Pressure Flexible Gas Hoses (3/8 Brass Female Flare Ends)
    • OPTIONS Choose Different Length or Material Hose
  3. PHA12F-90 & (2) PHA12M Brass Fittings –  (PHA12F-90 Converts 1/2″ Thread from Mounting Kit to Hose Flare & PHA12M Convert Key Valve to 3/8 Hose Flare)
    • OPTIONS Choose Different Size Flare, Angled, or Straight Fittings
  4.  1/2″ Key Valve, 3″ Key and Cover Plate
    • OPTIONS Choose Straight/ Angled or 3/4 Valve, Different Color Cover Plate & Key Lengths, Shaft Extension Fitting
  5.  FRMK – Fire Burner Mounting Kit 4″ Fully Threaded Nipple & (2) 2.5″ Threaded Washers – Burner Can be Adjusted Up or Down 3″
    • OPTIONS – Extend Mounting Shaft Additional 4″ by adding another Nipple (NIP4) and A Coupling (PHA12FF) – gives up to 6-7″ Up/ Down Flexibility on burner mounting.



Outdoor only use.

DIYGasFirePits.com offers a simple approach to making your own gas fire feature by:

1) Choosing the Particular Kit For Your Needs (we offer 6 to choose from; FRMK, DK, CK, CK+, ITCK+, K++)

2) Choosing a Corresponding Burner for Your Kit. All of our Burners are 316 Stainless Lifetime Warranted Burners (not lessor 304 grade others offer). We offer Round (FR), Linear (T, TB, H & B) as well as Torch / Bowl Burners (B4, TORCH).

3) Choosing How You Would Customize Your Kit with Options such as Regulator and Hose Substitutions (Higher or Lower Pressure Regulators, Shorter or Longer Hoses; stainless or rubber), Electronic IgnitionPans/ Inserts, Custom Fittings, Key Valve color and Key Size options, and Shipping Preferences.



Burners and Rings: all of our burners and rings are made of the highest quality ss316 marine grade non-magnetic stainless steel. the same stainless you see on cruise ships, not lessor ss304 "tool or grill grade" stainless 90 percent of other companies produce. easy fire pits. Burners are made to last for not just your lifetime, but that of your kids! and we put that guarantee in writing. see our works or we replace it lifetime guarantee.

Our easy to work with burners and parts allow anyone to make a personal, artsy, yard or table enhancing fire feature; one that can be altered and customized, re-used from home to home, or brought from party to party. our complete kits are made of straight forward parts; easy enough for most amateurs to use, and yet a dream for any DIY (do it yourself) or professional fire feature builder. we look forward to your orders and know you will enjoy our products for decades to come. once you make one for yourself, remember, our kits make great gifts!
